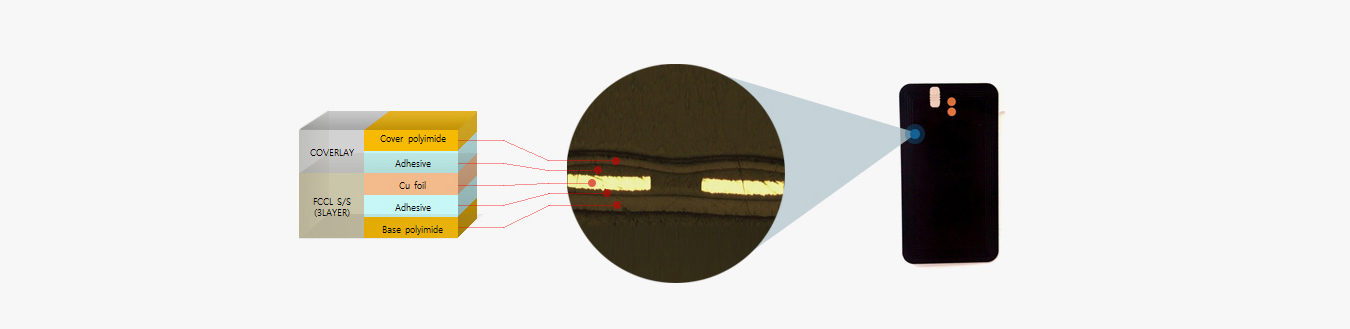

Structure of FPCB
Single-Side
TECHNOLOGY DRIVEN ELECTRONIC COMPANY
- Single-Side
- Gloflex will become a company that continuously struggle and challenge toward the global best position with the core value and the core strategies.
Main features

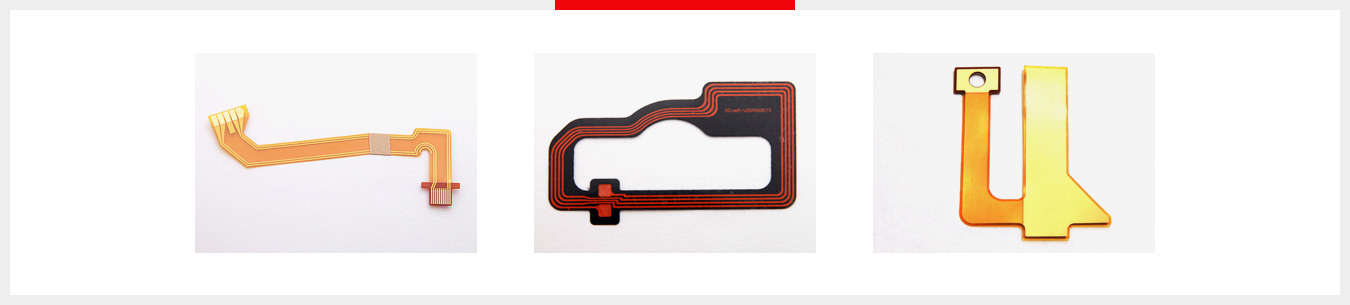

- Applied mainly to simple function products such as cables and sub-boards that link a connector as a most basic type forming the circuit on a side.
- Mainly used for pick-up module of ODD products or 3-D wiring of small appliances.
Usage
- Digital camera, camcoder, monitor, mobile phone, facsimile, photocopier, PDA, head lamp, laptop computer, LCD monitor, hard disk, printer, etc.
Specification
| ITEM | SPEC |
|---|---|
| Bese Material | Polyimide or Polyester |
| Cover-lay | Polyimide or Polyester or Solder Mask |
| Thickness | 0.08mm ~ 0.3mm |
| Line Width/Space | Nomal Min, 0.05/0.05mm, Special Min, 0.04/0.04mm |
| Conductor | 1/3oz, 1/2oz, 1oz ED or RA Copper |
| Surface finish | Electroless nikel immersion Gold, Direct Gold, soft Gold, Hard Gold, Sn plating |
| Stiffener | Polyimide, Glass epoxy, Steel use stainless |
| Double coated tape | Conted Tape 3M 467,966, Sony D3410, T4100 etc |
