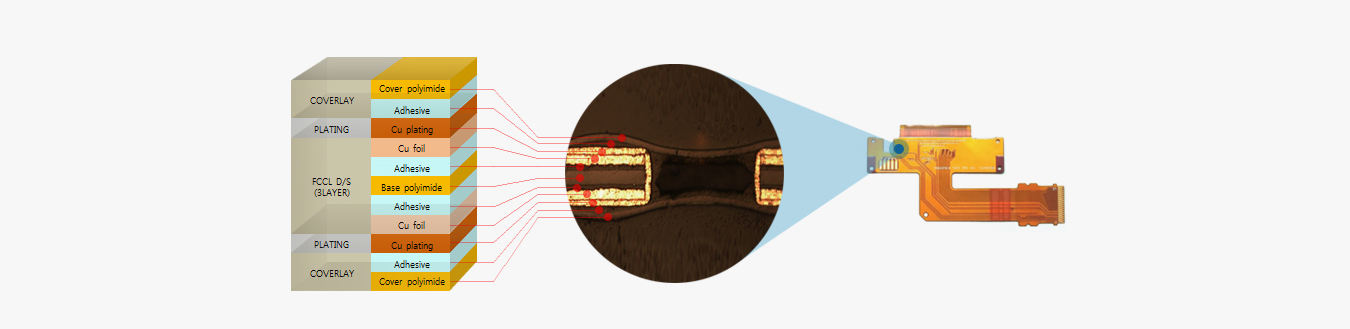

Structure of FPCB

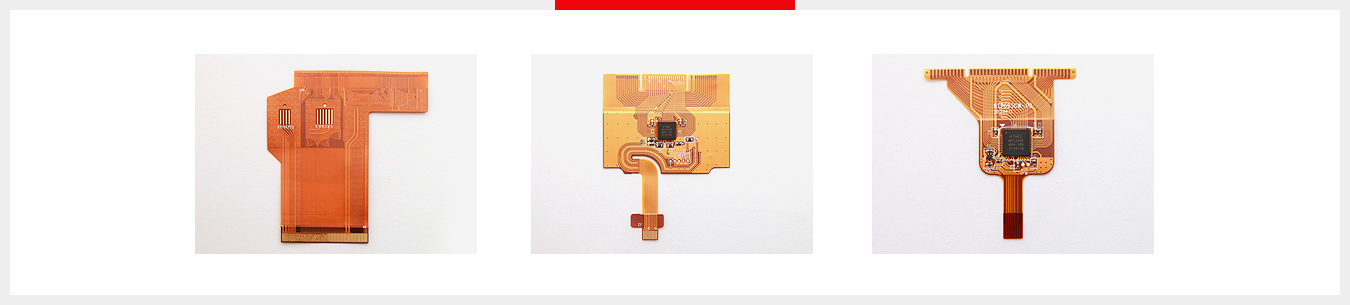

Double-Side
TECHNOLOGY DRIVEN ELECTRONIC COMPANY
- Double-Side
- Gloflex will become a company that continuously struggle and challenge toward the global best position with the core value and the core strategies.
Main features
- Allows to connect functions between FPCBs without a connector
- Applies mobile communication devices utilizing 3-D circuit patterns
- Reflects circuits’ high-density requirements by providing circuits to both ends of the base film and designed to allow electrical access for both TOP and BOT
- Allows mounting on both sides, thus provides high mounting density of parts
Usage
- Digital camera, camcoder, monitor, mobile phone, copy machine , PDA, HEAD LAMP
- Laptop computer, Hard disk, printer, CD, DVD, LCD module, TFT, PDP, OLED
Specification
| ITEM | SPEC |
|---|---|
| Bese Material | Polyimide or Polyester |
| Cover-lay | Polyimide or Polyester or Solder Mask |
| Thickness | 0.01mm ~ 0.3mm |
| Line Width/Space | Nomal Min, 0.065/0.065mm, Special Min, 0.04/0.04mm |
| Conductor | 1/3oz, 1/2oz, 1oz ED or RA Copper |
| Surface finish | Electroless nikel immersion Gold, Direct Gold, soft Gold, Hard Gold, Sn plating |
| Stiffener | Polyimide, Glass epoxy, Steel use stainless |
| Double coated tape | Conted Tape 3M 467,966, Sony D3410, T4100 etc |
